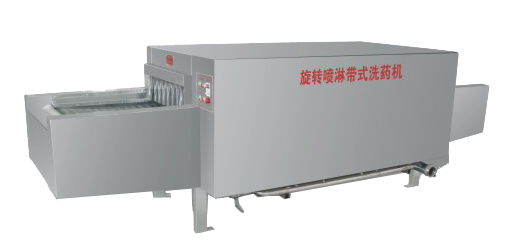

      旋轉噴淋帶式洗藥機

      • 適用于塊狀及果實類藥物済洗后的瀝水、脫水,也 適用于食品、壤頭等行業同類物料的脫水。轉速變頻可調,可連續作業,清場方便,符合 GMP要求。
      • 咨詢熱線:0394-8583481
      • 產品詳情



      主要用途
      適用于植物藥的済洗除塵,尤其適用于根、莖類植物藥材。

      Main uses
      Suitable to wash away the duel on the herb, especially the dust on the stems and roots.

      主要特點
      輸送電機(變頻調速)通過鏈輪、鏈條驅動前輥輪鏈條網帶運動,轉動電機通過鏈輪、鏈條及偏心裝置實現八組噴水管的往復轉動,本機較傳統洗藥機節水50%,有很好清洗效果,符合GMP要求。

      Main technical characteristics
      The conveying motor drives the chain wheel, the front roller and apron chain net. And the rolling motor could achieve the result that eight faucets spray water repeatedly at the same time through the chain roller, the chain and the eccentric device. In this way the machine can save about 50% water. Thus it could meet the requirements of GMP.

      主要技術參數 Main technical parameter

      型號
      Type
      生產能力
      Capacity
      (kg/h)
      網帶寬度
      Belt width
      (mm)
      電機功率
      motor
      (KW)
      水壓
      water
      pressure
      (MPa)
      外形尺寸
      dimension
      (mm)
      總重量
      weight
      (kg)
      XYD-600 500-1500 600 0.75x2 0.3 4100x1150x1100 650
