主要用途
適用于制藥、化工、食品、輕工和重工業的原料和 產品的加熱除濕。

Main uses
Suitable to heat and dry materials in pharmaceutical, foods and different industries.

主要特點
熱風在箱內強制循環，熱效率高。箱內設可調分風 板.物枓干燥均勻.熱源可使用蒸汽、電。整機哚 音小，溫度可自動控制，安裝維修方便。

Main technical characteristics

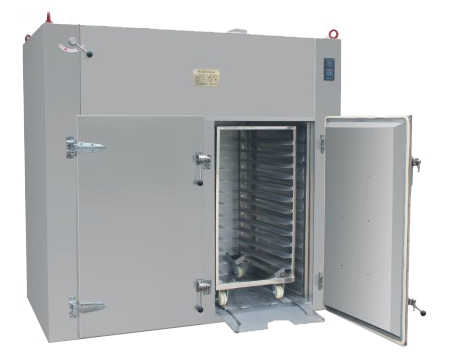

The hot air is circulated in the oven, thus it is very efficient. Divider plates can be placed in the oven, thus the herb material can be heated more uniformly. The heating resource can be gas or eclectic. The temperature can be adjusted according to different requirements. The machine is easy to operate and maintain.

主要技術參數 Main technical parameter

型號 Type	每次干燥量 drying amount (kg/b)	使用溫度 woking temperature (℃)	耗用蒸汽 gas consumption (kg/h)	電熱功率 electric power (kw)	風機功率 fan power (KW)	風機風量 fan volume (m3/h)	外形尺寸 dimension (mm)	整機重量 weight (kg)
CT-IV	400	50-140	80	72	0.45x4	13800	4520x2200x2250	2020
CT-III	300	50-140	60	54	0.45x3	10350	3300x2200x2250	2100
CT-II	200	50-140	40	36	0.45x2	6900	2260x2200x2250	1650
CT-I	100	50-140	20	18	0.45	3450	2260x1200x2250	1100
CT-0	50	50-140	10	9	0.45	2450	1380x1200x2250	520
