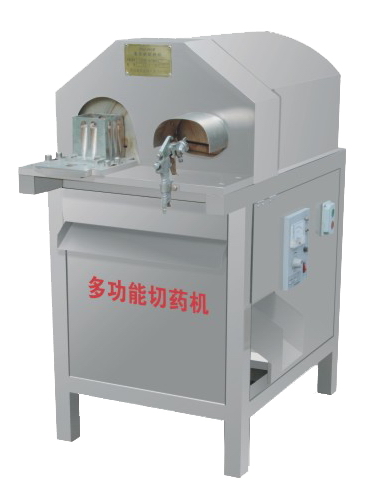

      多功能切藥機

      • 本機適用于根、莖、葉、草、皮類天然植物藥的飲片切制及其它行業類似物料的切制。 整機數控化生產,PLC+觸接屏控制,伺服電機控制進給.切制格確本機操作簡單,易維護,符合GMP要求。
      • 咨詢熱線:0394-8583481
      • 產品詳情



      主要用途

      利用不同藥口可生產出圓片、斜片、平片、瓜子片、柳葉片、指甲片、刨片等多種中藥材飲片,可通過壓縮空氣送料,切片厚度均勻。

      Main uses
      Through different herb outlets, different shapes of herb can be produced such as round shape、oblique shape、sun flower seed shape、willow leaf shape, finger nail shape. And the herb pieces are smooth and uniform.

      主要特點
      有適應不同藥材直徑的多種藥口及氣缸送料裝置,具有成品率高、藥材損耗小、切口平整、調整方便、維護性能好,符合GMP要求。

      Main technical characteristics
      There are different sizes of herb inlet doors and cylinders according to different herb. The machine has the characteristics of high yield and low herb loss and is easy to operate and maintain, and it could meet the requirements of GMP.

      型號
      Type
      生產能力
      Capacity
      (kg/h)
      切片厚度
      cut herb
      thickness
      (mm)
      主軸轉速
      Main axis
      speed
      (mm)
      電機功率
      motor
      (KW)
      外形尺寸
      dimension
      (mm)
      整機重量
      weight
      (kg)
      QGX480 3-120 0.5-3 無極可調
      continuously
      variable
      1.5 850x650x1050 200
