主要用途
適用于根、莖、葉、草、皮、塊狀及果實類植物藥的飲片切制。
Main uses

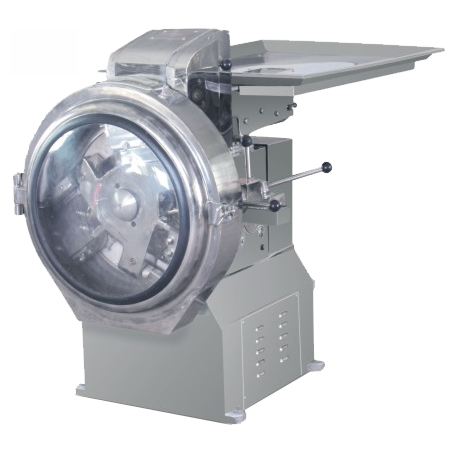

QY 120-4 herb-cutting machine is suitable to cut roots, stem, grass, barks, and fruits. It can be used in cutting herb and other industries.
主要特點
切片厚度調整方便，傳動可靠、調整簡易、效率高、維修方便，符合GMP要求。
Main technical characteristics
The herb thickness can be adjusted easily. It is easy to operate and maintain the machine, thus ii can meet the requirements of GMP.
型號
Type |
生產能力
Capacity
(kg/h) |
刀門尺寸
herb inlet
door size
(mm) |
切制長度
the cut herb
length
(mm) |
電機功率
motor
(KW) |
外形尺寸
dimension
(mm) |
整機重量
weight
(kg) |
|
QY120-4 |
70-700 |
120x50 |
1、2、3、
4、6、12 |
3 |
1500x750x1100 |
650 |
